Shell and Tube Heat
Exchanger Manufacturer

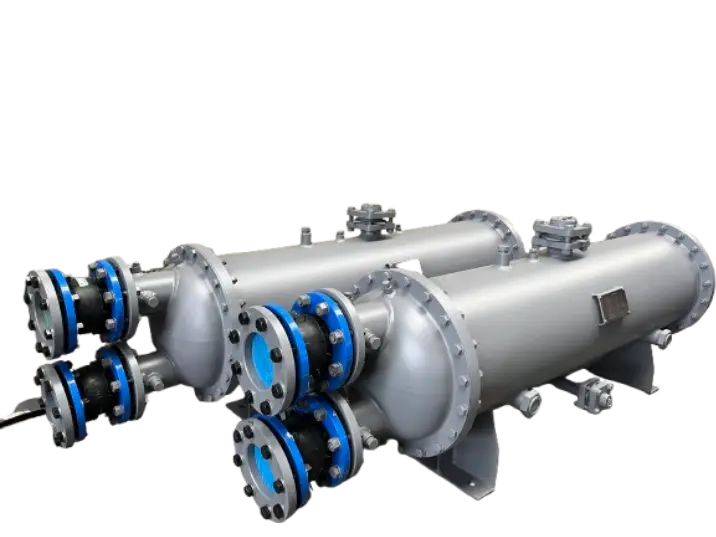

Custom Shell And Tube Heat Exchangers Solutions for Industrial Applications
Shell and Tube Heat Exchanger Types
Dry Expansion Evaporator
Compact structure and stable operation, suitable for chillers and industrial refrigeration systems.
Flooded Evaporator
High heat transfer efficiency, ideal for large cooling capacity and continuous refrigeration operation.
Falling Film Evaporator
Low refrigerant charge and high energy efficiency, suitable for high-efficiency refrigeration systems.
Water Cooled Condenser
High condensing efficiency structure, suitable for water-cooled units and industrial cooling systems.
Seawater Condenser
Strong seawater corrosion resistance, suitable for marine seawater cooling applications.
Heat Exchanger Unit
Integrated design for project-based and complete heat exchange system requirements.
Anti-Corrosion Series Heat Exchanger
Cooling Capacity: 10KW~800KW
Temperature Range: -30°C~40°C
Application Scenarios
Suitable for marine use and refrigeration equipment for seawater aquaculture.
Material Features
The shell can be made of 2205, 316L, or plastic materials. The heat exchange tubes are made of titanium tubes, and the tube sheets use titanium composite tube sheets, offering strong corrosion resistance and a long service life.
Adjustable Structure
An upper and lower combined structure can be adopted to meet anti-corrosion requirements for both cooling and heating applications.
Stainless Steel Modular Unit Heat Exchanger
Cooling Capacity: 65KW~520KW
Temperature Range: -12°C~50°C
Various Specifications Available
25P single-compressor, dual-compressor, 4-compressor and other combinations are available.
Stainless Steel High-Efficiency Evaporator Tube
Greatly reduces copper tube corrosion and wear problems, lowering costs by 20%+.
Processing Technology
Tube sheet groove design prevents leakage, and the integrated tube-box processing process eliminates leakage.
Flooded Evaporator
Cooling Capacity: 100KW-2500KW
Temperature Range: -20°C~95°C
Uniform Distribution：
The bottom liquid distribution plate is reasonably designed to ensure proper flow velocity after distribution, avoiding liquid climbing along the side wall caused by excessively high flow velocity.
High-Efficiency Tooth Profile
The tooth profile of the flooded evaporator tube is optimized to improve heat exchange efficiency.
High Oil Separation Efficiency
Equipped with a standard external oil separator and a two-layer labyrinth filter structure, providing higher oil separation efficiency.
Falling Film Evaporator
Cooling Capacity: 100KW-2500KW
Temperature Range: -20°C~95°C
Uniform Distribution
The falling film distributor features a five-stage liquid distribution mechanism, allowing the inlet liquid to be evenly sprayed onto each copper tube.
High-Efficiency Tooth Profile
The tooth profile of the falling film evaporator tube is optimized to improve heat exchange efficiency.
High Oil Separation Efficiency
Equipped with a standard external oil separator and a two-layer labyrinth filter structure, providing higher oil separation efficiency.
Shell and Tube Condenser for Cold Storage
Cooling Capacity: 8KW~200KW
Temperature Range: -30°C~40°C
Full Series
A full range of designs is available for 3P-50P semi-hermetic compressors such as Bitzer, Copeland, and RefComp.
Material Selection
The heat exchange tubes can be made of high-efficiency copper condenser tubes or stainless steel tubes for lower cost.
Structural Features
Universal compressor base, integrally formed water chamber, and compact structure.
Seawater Condenser
Cooling Capacity: 9KW~800KW
Applicable Compressor: 3HP~200HP
Application Scenarios
Suitable for marine refrigeration, seawater cooling, and aquaculture refrigeration systems.
Material Selection
Heat exchange tubes are available in aluminum brass, copper-nickel, titanium, and other materials.
Strong Corrosion Resistance
End covers can be made of aluminum bronze, polymer, anti-corrosion coating, or duplex stainless steel for stable performance in seawater conditions.
Screw-Type Series Heat Exchanger
Cooling Capacity: 50KW~3000KW
Temperature Range: -50°C~85°C
Full Series
A full range of designs is available for Hanbell, Bitzer, RefComp, Fusheng and other compressors under air-conditioning, standard, and low-temperature operating conditions.
Application Scenarios
Suitable for air-conditioning refrigeration, industrial chilled water, brine ice making, vegetable pre-cooling, and flower freeze-drying.
Adjustable Structure
Stable L-shaped or triangular structure with reasonable tube layout. Various component supports and unit connection pipes can be customized according to user requirements, reducing unit assembly time by 50%.
Standard Products Available. Custom Solutions Ready.
We provide standard shell and tube heat exchanger products, and most models can be customized based on your working conditions, medium, temperature, pressure, flow rate, installation space, connection type, and material requirements.
Customization Process
01
Submit application requirements
Share your application, equipment use, or product reference, and we help confirm the suitable solution.
02
Confirm technical parameters
Confirm cooling capacity, medium, pressure, temperature, flow rate, size, connection, and material requirements.
03
Preliminary solution design
Design the structure, size, connections, materials, and heat transfer performance based on working conditions.
04
Quotation and solution communication
Provide a fast quotation based on design, materials, and production requirements, with further optimization available.
05
Drawing confirmation
Finalize drawings, structure, dimensions, connection direction, materials, and production details.
06
Customized manufacturing
Manufacture according to confirmed drawings, including processing, assembly, welding, and inspection.
Why Choose Us
Our Advantages
High-quality shell and tube heat exchangers backed by faster delivery, reliable quality, and certified manufacturing capability.
Customized Production
Custom design based on project requirements, working conditions, and technical parameters.
Reliable Quality Assurance
Strict quality control from raw materials to finished products, with a 99.9% pass rate and a 36-month warranty.
Reliable Partnership
Professional support for product selection, material configuration, structural design, and technical evaluation.
Fast Delivery
Standard products can usually be delivered within 6–8 days.
Certified Manufacturing
Backed by 77 patents and D1/D2 certification for stronger manufacturing capability.
Responsive After-sales Service
Fast response and on-site technical support available when needed.
6-8 Days
Fast Delivery
Standard products can usually be delivered within 6–8 days.
99.9%
Pass Rate
Strict quality control from raw materials to finished products.
77
Patents Continuous innovation drives industry-leading performance.
36-Month
Warranty
Reliable product quality with long-term warranty for your peace of mind.
100+
Global Customers Trusted by customers in 30+ countries across various industries.
Production & Quality Control
From incoming inspection to in-process checking and final inspection, every production stage is strictly controlled.
01 Incoming Material Inspection
02 Tube Sheet Hole Inspection
03 Shell Inner Wall Inspection
04 Appearance & Weld Point Inspection
05 Drawing & Process Verification
06 Shell Dimension Inspection
07 Assembly Dimension Inspection
08 Final Inspection
09 Final Inspection Report
Contact Us
Need a Heat Exchanger Solution for Your Project?
Tell us your requirements and our team will help you find the right solution.
